PostgreSQL索引失效会发生什么

bill=# begin;
BEGIN
bill=*# create index idx_t1 on t1(id);
CREATE INDEX
bill=*# explain select * from t1 where id = 1;
QUERY PLAN
—————————————————-
Seq Scan on t1 (cost=0.00..25.88 rows=6 width=36)
Filter: (id = 1)
(2 rows)

bill=*# end;
COMMIT
bill=# explain select * from t1 where id = 1;
QUERY PLAN
———————————————————————
Bitmap Heap Scan on t1 (cost=1.50..7.01 rows=6 width=36)
Recheck Cond: (id = 1)
-> Bitmap Index Scan on idx_t1 (cost=0.00..1.50 rows=6 width=0)
Index Cond: (id = 1)
(4 rows)

bill=*# select indcheckxmin from pg_index where indexrelid = ‘idx_t1’::regclass;
indcheckxmin
————–
t
(1 row)

bill=# insert into t1 select generate_series(1,10),md5(random()::text);
INSERT 0 10

bill=# update t1 set info = ‘bill’ where id = 10;
UPDATE 1

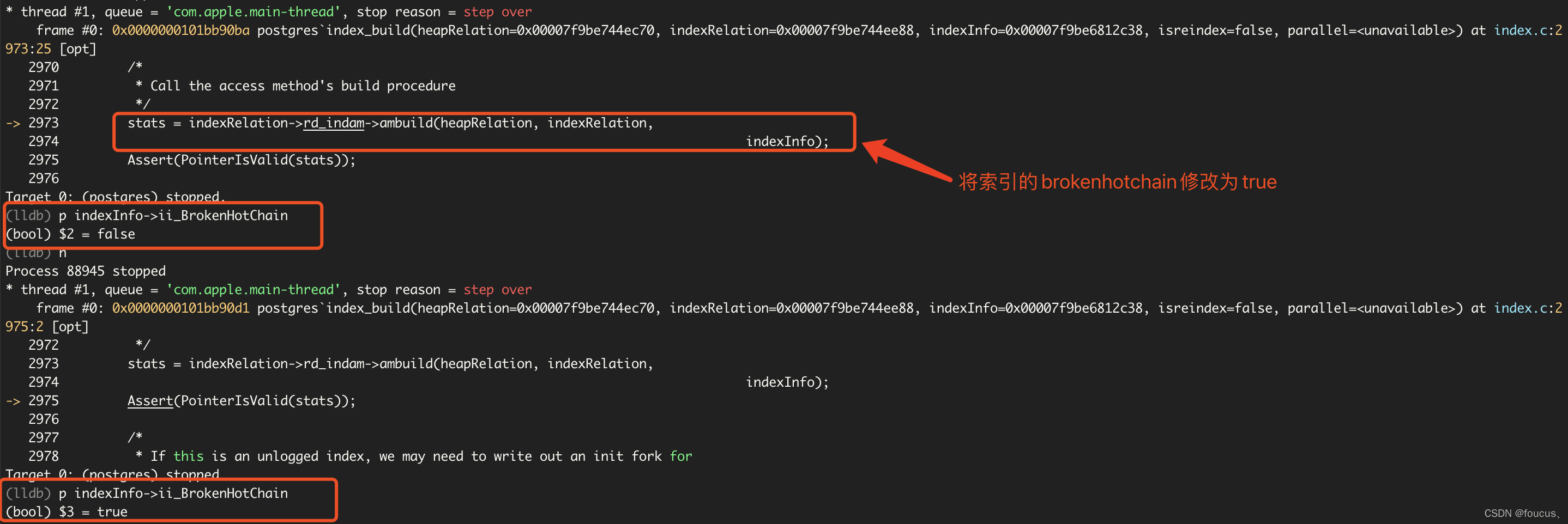

/*此时indexInfo->ii_BrokenHotChain已被修改为true */
if ((indexInfo->ii_BrokenHotChain || EarlyPruningEnabled(heapRelation)) &&
!isreindex &&
!indexInfo->ii_Concurrent)
{
Oid indexId = RelationGetRelid(indexRelation);
Relation pg_index;
HeapTuple indexTuple;
Form_pg_index indexForm;
pg_index = table_open(IndexRelationId, RowExclusiveLock);
indexTuple = SearchSysCacheCopy1(INDEXRELID,
ObjectIdGetDatum(indexId));
if (!HeapTupleIsValid(indexTuple))
elog(ERROR, “cache lookup failed for index %u”, indexId);
indexForm = (Form_pg_index) GETSTRUCT(indexTuple);
/* If it’s a new index, indcheckxmin shouldn’t be set … */
Assert(!indexForm->indcheckxmin);
/*将indcheckxmin修改为true */
indexForm->indcheckxmin = true;
CatalogTupleUpdate(pg_index, &indexTuple->t_self, indexTuple);
heap_freetuple(indexTuple);
table_close(pg_index, RowExclusiveLock);
}

bill=# drop table t1;
DROP TABLE
bill=# create table t1(id int,info text);
CREATE TABLE
bill=# begin;
BEGIN
bill=*# create index idx_t1 on t1(id);
CREATE INDEX
bill=*# select indcheckxmin from pg_index where indexrelid = ‘idx_t1’::regclass;
indcheckxmin
————–
t
(1 row)

bill=*# explain select * from t1 where id = 1;
QUERY PLAN
—————————————————-
Seq Scan on t1 (cost=0.00..25.88 rows=6 width=36)
Filter: (id = 1)
(2 rows)

typedef struct SnapshotData
{
SnapshotType snapshot_type; /* type of snapshot */
/*
* The remaining fields are used only for MVCC snapshots, and are normally
* just zeroes in special snapshots. (But xmin and xmax are used
* specially by HeapTupleSatisfiesDirty, and xmin is used specially by
* HeapTupleSatisfiesNonVacuumable.)
*
* An MVCC snapshot can never see the effects of XIDs >= xmax. It can see
* the effects of all older XIDs except those listed in the snapshot. xmin
* is stored as an optimization to avoid needing to search the XID arrays
* for most tuples.
*/
TransactionId xmin; /* all XID < xmin are visible to me */
TransactionId xmax; /* all XID >= xmax are invisible to me */
/*
* For normal MVCC snapshot this contains the all xact IDs that are in
* progress, unless the snapshot was taken during recovery in which case
* it’s empty. For historic MVCC snapshots, the meaning is inverted, i.e.
* it contains *committed* transactions between xmin and xmax.
*
* note: all ids in xip[] satisfy xmin <= xip[i] < xmax
*/
TransactionId *xip;
uint32 xcnt; /* # of xact ids in xip[] */
/*
* For non-historic MVCC snapshots, this contains subxact IDs that are in
* progress (and other transactions that are in progress if taken during
* recovery). For historic snapshot it contains *all* xids assigned to the
* replayed transaction, including the toplevel xid.
*
* note: all ids in subxip[] are >= xmin, but we don’t bother filtering
* out any that are >= xmax
*/
TransactionId *subxip;
int32 subxcnt; /* # of xact ids in subxip[] */
bool suboverflowed; /* has the subxip array overflowed? */
bool takenDuringRecovery; /* recovery-shaped snapshot? */
bool copied; /* false if it’s a static snapshot */
CommandId curcid; /* in my xact, CID < curcid are visible */
/*
* An extra return value for HeapTupleSatisfiesDirty, not used in MVCC
* snapshots.
*/
uint32 speculativeToken;
/*
* For SNAPSHOT_NON_VACUUMABLE (and hopefully more in the future) this is
* used to determine whether row could be vacuumed.
*/
struct GlobalVisState *vistest;
/*
* Book-keeping information, used by the snapshot manager
*/
uint32 active_count; /* refcount on ActiveSnapshot stack */
uint32 regd_count; /* refcount on RegisteredSnapshots */
pairingheap_node ph_node; /* link in the RegisteredSnapshots heap */
TimestampTz whenTaken; /* timestamp when snapshot was taken */
XLogRecPtr lsn; /* position in the WAL stream when taken */
/*
* The transaction completion count at the time GetSnapshotData() built
* this snapshot. Allows to avoid re-computing static snapshots when no
* transactions completed since the last GetSnapshotData().
*/
uint64 snapXactCompletionCount;
} SnapshotData;

/*
* Implement slower/larger portions of TestForOldSnapshot
*
* Smaller/faster portions are put inline, but the entire set of logic is too
* big for that.
*/
void
TestForOldSnapshot_impl(Snapshot snapshot, Relation relation)
{
if (RelationAllowsEarlyPruning(relation)
&& (snapshot)->whenTaken < GetOldSnapshotThresholdTimestamp())
ereport(ERROR,
(errcode(ERRCODE_SNAPSHOT_TOO_OLD),
errmsg(“snapshot too old”)));
}

/*
* At this moment we are sure that there are no transactions with the
* table open for write that don’t have this new index in their list of
* indexes. We have waited out all the existing transactions and any new
* transaction will have the new index in its list, but the index is still
* marked as “not-ready-for-inserts”. The index is consulted while
* deciding HOT-safety though. This arrangement ensures that no new HOT
* chains can be created where the new tuple and the old tuple in the
* chain have different index keys.
*
* We now take a new snapshot, and build the index using all tuples that
* are visible in this snapshot. We can be sure that any HOT updates to
* these tuples will be compatible with the index, since any updates made
* by transactions that didn’t know about the index are now committed or
* rolled back. Thus, each visible tuple is either the end of its
* HOT-chain or the extension of the chain is HOT-safe for this index.
*/
